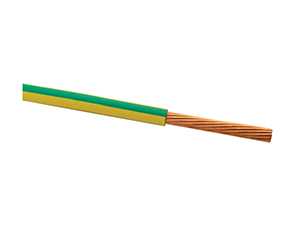

Fixed Wiring and Non-sheathed Cable

Main Parameters
Product Name: Fixed wiring and non-sheathed cable
Product Standard: GB5023.3-2008 (IEC227-3: 1985), JB8734.3-1998, JB8734.4-1998
Model of Cable: 60227IEC01(BV); 60227IEC02(RV) BVR; 60227IEC05(BV); 60227IEC06(RV); 60227IEC01(BV-90); 60227IEC08(RV-90); BV, AV, AV-90, AVR, AVR-90
Fixed Wiring Cable Specification:
60227IEC01 (BV): 450/750V 1.5~95 mm2;
60227IEC02 (RV): 450/750V 1.5~6 mm2;
60227IEC05(BV): 300/500V 0.5~1.0mm2;
60227IEC06(RV): 300/500V 0.5~1.0mm2;
60227IEC01(BV-90): 300/500V 0.5~2.5mm2;
60227IEC08(RV-90): 300/500V.5~2.5mm2;
BV: 300/500V 0.75~1.0mm2;
BVR: 450/750V 2.5~70 mm2;
AV, AV-90, AVR, AVR-90 300/300V0.2~0.4mm2
Operating Temperature: 0°C~40°C (Max. allowed temperature of conductor is 70°C.)
Conductor Material: Anaerobic soft copper wires
Insulation Material:
High quality lead-free PVC soft insulation material for BV, RV, BVR, AV and AVR fixed wiring and non-sheathed cable.
High quality lead-free heat resistant PVC soft insulation material for the BV-90, RV-90, AV-90 and AVR-90 elevator wiring cable.
Color of Insulation Core: Random
Burning Test: Conforms to the requirements for single cable vertical burning test specified by IEC60332-1.
DC Resistance of Conductor at 20°C: Complies with GB3956.-1997 (IEC228: 1978) and JB8734.3~4-1998
Insulation Resistance at 70°C: Complies with GB5023.3-2008 (idt IEC227-3: 1985) and JB8734.3.4-1998
Finished Product Voltage Withstand Test:
300/300V: 1.5KV (AC)/5min, no breakdown;
300/500V: 2.0KV (AC)/5min, no breakdown;
450/750V: 2.5KV(AC)/5min,no breakdown
3C Certificate No.: 2003010105082949, 2004010105119784, 200401010519789
Lead Free Environmental Performance: Our non-sheathed elevator cable fully conforms to the requirement on heavy metal content specified by the EU RoHS.

Other products

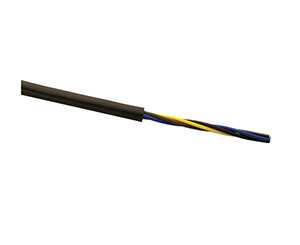

    1. PVC Insulated Soft Cable(5 Cores or below 5)
    2. PVC Insulated Soft Cable(5 Cores or below 5)

      Insulation Resistance at 70°C: Complies withGB5023.5-2008 (idt IEC227-5: 1985) requirement Finished Product Voltage Withstand Test: 2.0KV (AC)/5min, no breakdown Product Certificate: 3C Certificate No.: 2003010105082952; CE Certificate No.: CE-LVD-0502 Lead Free Environmental Performance: The heavy metal element content in our PVC insulated soft wire fully complies with EU RoHS requirements

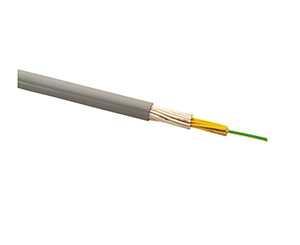

    1. PVC Insulated Soft Cable(6 Cores or above 6)
    2. PVC Insulated Soft Cable(6 Cores or above 6)

      Insulation Resistance of PVC Insulated Soft Elevator Cable at 70°C: Complies with CNCA-01C-002: 2007 requirement. Finished Product Voltage Withstand Test: 2.0KV (AC)/5min, no breakdown Product Certificate: 3C Certificate No.2004010105119795; CE Certificate No.: CE-LVD-0502 Lead Free Environmental Performance: Our product fully complies with the requirement on heavy metal content specified by the EU RoHS.
