Elevator Main Controller Board

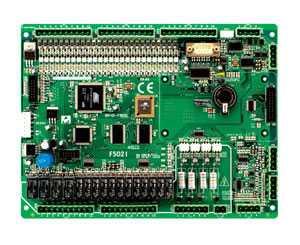

    2. 32-Bit Standard Serial Main Controller Board The main controller board is equipped with a 32-bit industrial ARM processor, and comes with dual-CPU to ensure improved system safety. It offers strong anti-interference and anti-static capabilities and passed the test for contact discharge up to 8000V. The 32-bit standard serial main controller board is manufactured according to EN81 and GB7588 safety rules, and is ideal for control of elevators in commercial buildings and residential buildings up to 64 floors. It helps ensure smooth, steady, accurate and comfortable elevator running. The maximum elevator speed is up to 4m/s.
      Inquiry Form

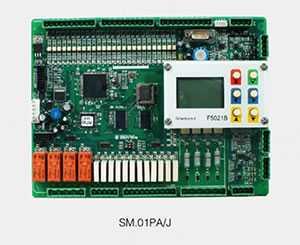

    2. 32-bit Elevator Controller Board 1. CAN Bus serial communication method is applied to our commercial elevator main controller board. 2. Analog speed presetting and multi speed presetting modes are available to our 32-bit elevator controller board. 3. This elevator controller panel is compatible with differential, open-collector and push-pull encoders. 4. Our product comes with duplex control and group control function, load weighing compensation function, elevator IC card management function, district monitoring function and remote monitoring function. 5. Our elevator control circuit board supports tri-car door opening and can be operated through the STEP standard hand-held operator. 6. The LCD display is able to show the status and parameter of the system as well as the real-time speed curve of the elevator.
      Inquiry Form

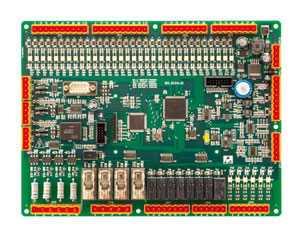

    2. 32-Bit High Performance Serial Main Controller Board The 32-bit high performance serial main controller board is manufactured in accordance with EN81 and GB7588 safety standards, and is ideal for control of commercial elevator and residential elevators. It allows elevators to operate at a maximally speed of 6.3m/s among 64 floors. With a LCD operation panel, the 32-bit serial main controller board can show the system status and parameters and offer real-time display of elevator operation curve. In addition, it can be used to control elevators with three doors, and supports control of elevators driven by either asynchronous motor or synchronous motor.
      Inquiry Form

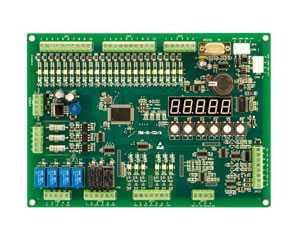

    2. 16-Bit Serial Main Controller Board The 16-bit serial main controller board is designed with a high performance industrial CPU and has strong antistatic and anti-electromagnetic interference capabilities. It conforms to EN81 and GB7588 safety rules. It allows residential elevators to operate at a maximum speed of 1.75m/s to maximally 32 floors, and the elevator traction machine can be driven by either synchronous motors or synchronous motors. The serial main controller board supports duplex control of two elevators.
      Inquiry Form

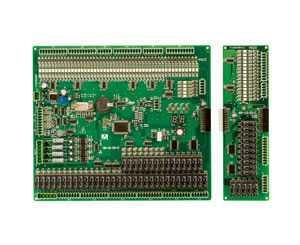

    2. 16-Bit Parallel Main Controller Board The 16-bit parallel main controller board conforms to EN81 and GB7588 safety standards, and ideal for cargo lifts. It is designed with high performance industrial CPU and is characterized by strong anti-electromagnetic interference and anti-static capabilities. Terminals using pressure spring connection method make the wire connection of the parallel main controller board simple and easy.
      Inquiry Form
    2. Home Hydraulic Lift Controller Board The home hydraulic lift controller board is manufactured according to related safety rules in North America area, and is CSA marked. It features small size and convenient installation, high antistatic and anti-electromagnetic interference capabilities. Meanwhile, it is designed with additional CAN ports to ensure its superior expansion capability and a high performance CPU.
      Inquiry Form

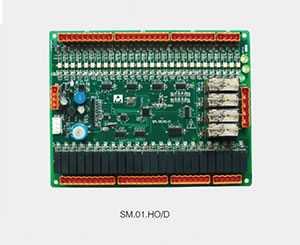

    2. Home Lift Controller Board 1. As its name suggests, this home lift controller board is specifically designed to be used in home lift. It is applicable for lift with maximum 5 stops and rated speed not exceeding 0.5m/s. 2. Our control circuit panel for home lift adopts hydraulic drive and supports parallel signal input. 3. This product is equipped with an operator on board and the operator is used for examining and adjusting the system status. In addition, our STEP standard hand-held operator is also suitable for this home lift controller panel. 4. Our home lift controller board is able to save 20 pieces of lift fault records.
      Inquiry Form

Our elevator main controller board is designed with a high performance 32-bit ARM processor, and offers accurate speed signal, good security monitoring performance, and high anti-interference capability, etc. Also, it comes with strong anti-electromagnetic interference and anti-static capabilities. Our elevator main controller board is commonly used for the control of commercial elevators, home elevator, and hydraulic elevators for villas, to name a few.

As an experienced elevator main controller board manufacturer and supplier in China, at STEP we also offer car controller board, full serial VVVF control cabinet, fan inverter, water pump inverter, and more.
