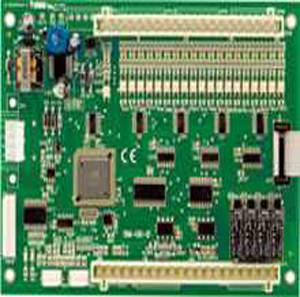

Car Controller Board

The car controller board uses CANBUS serial communication method, so it features simple wire connection and helps save connection cables. Meanwhile, it has great anti-electromagnetic interference ability and anti static performance, and can offer overcurrent protection function.

The car controller board has various signal outputs which enable it to offer various functions, including car arrival gong, car lighting control, car nudging, overload indicator, and buzzer alarming functions. Meanwhile, it comes with a voice announcer to remind passengers the arrivals. It supports at most 8 SM-03 car command boards to allow elevators to go up to maximally 64 floors. In addition, the car controller board has connection ports for door opening and closing buttons, and is designed with light curtain safety protection function and a safety touch panel switch.

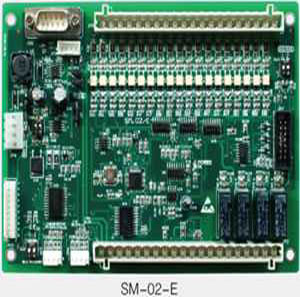

Elevator Car Control Board SM-02-E
Model: SM-02-E

Functions
1. The SM-02-E elevator car control board offers signal output for arrival gong, car lighting control, forced door closing, overload indicator, buzzer alarming function, etc.
2. Connection points for door opening and door closing buttons
3. Safety touch switch and light curtain switch for front and rear door
4. Available for serial and parallel lou;dspeaker
5. Maximum 8 pieces of SM-03 car command boards to allow elevators to go up to 64 floors.
6. CAN Bus serial communication method
7. In-car debugging available

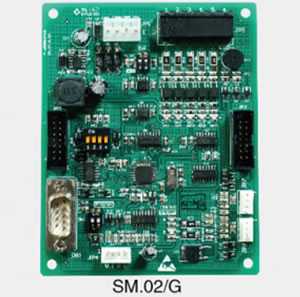

Elevator Car Control Board
Model: SM.02/G

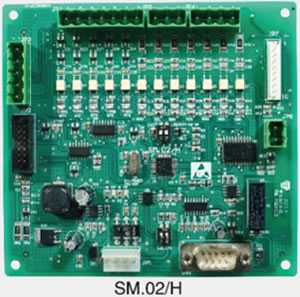

Elevator Car Top Control Board
Model: SM.02/H

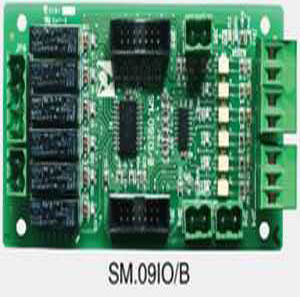

Extension Board
Model: SM.0910/B

Functions
1. Signal output for arrival gong, car lighting control, forced door closing, and overload indicator, etc.
2. Connection points for door opening and door closing buttons
3. Safety touch switch and light curtain switch for front and rear door
4. The elevator car control board supports serial and parallel loudspeaker
5. Maximum 8 pieces of SM-03 command boards for building with 64 floors
6. Extended functions available, such as hold-on button, NS-SW switch
7. Debugging in car is available with our elevator car control board
8. Buzzer integrated with car control board, requiring no other external buzzer

As a professional car controller board manufacturer in China, we offer a vast range of products that includes full serial VVVF control cabinet, elevator inverter, general vector inverter, elevator group control system, and more.

Other products
    1. Car Command Board
    2. Car Command Board

      1. This car command board shall be used together with car control board of SM-02 series. 2. One piece of SM-03-D series is suitable for the building with maximum 8 floors. 3. One piece of SM-03-E series is applicable for the building with maximum 16 floors. STEP is a China-based car command board manufacturer and supplier. Our company also provides integrated full serial VVVF control cabinet, serial calling board, elevator integrated drive and controller, elevator inverter, and much more.

    1. Dot-matrix LCD Elevator Calling / Indicator Board
    2. Dot-matrix LCD Elevator Calling / Indicator Board

      1. Our dot-matrix LCD elevator calling & indicator board adopts a 16-bit high performance industrial grade CPU. 2. It is equipped with a 320×240 dot matrix display which is able to display rich contents clearly and softly. The display area is in the size of 115mm×86mm and users can define the welcome messages displayed on the board freely. 3. Three kinds of display color patterns are available to this elevator indicator panel. They are respectively white words in blue background, white words in black background and yellow words in black background.
