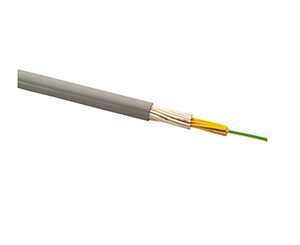

PVC Insulated Soft Cable(6 Cores or above 6)

Main Parameters
Product Name: PVC insulated soft cable
Product standard: CNCA-01C-002: 2007
Model of PVC Sheathed Elevator Cable: RVV
Opening Temperature: 0°C~40°C (Max. allowed temperature of conductor is 70°C)
Conductor Class: Class 5
Conductor Material: Anaerobic soft copper wires
Insulation Material: High quality lead-free PVC soft insulation material
Color of Insulation Core: Various colors with printed numbers
Sheath Material and Color of PVC Insulated Soft Cable: High quality lead-free PVC soft sheath; gray (or black)
Burning Test: Conforms to the requirements for single cable vertical burning test specified by IEC60332-1.
DC Resistance of Conductor at 20°C: Complies with GB/T3956-1997 (IEC228-3: 1978) and JB8734.3~4-1998 requirements.
Insulation Resistance of PVC Insulated Soft Elevator Cable at 70°C: Complies with CNCA-01C-002: 2007 requirement.
Finished Product Voltage Withstand Test: 2.0KV (AC)/5min, no breakdown
Product Certificate: 3C Certificate No.2004010105119795; CE Certificate No.: CE-LVD-0502
Lead Free Environmental Performance: Our product fully complies with the requirement on heavy metal content specified by the EU RoHS.

Other products
    1. Flexible Elevator Cable (24 Cores or below 24)
    2. Flexible Elevator Cable (24 Cores or below 24)

      Sheath Material and Color: High quality cold proof and lead-free elastic PVC material, gray (or black) Burning Test: Conforms to the requirements for single cable vertical burning test specified by IEC60332-1. DC Resistance of Conductor at 20°C: Complies with GB/T3956-1997 (IEC228) Insulation Resistance at 70°C: Complies with GB5023.6-2008 (IEC227-6)

    1. Flexible Elevator Cable (25 Cores or above 25)
    2. Flexible Elevator Cable (25 Cores or above 25)

      Color of Insulation Core: Various colors with printed numbers Sheath Material and Color: High quality cold proof and lead-free elastic PVC, gray (or black) Burning Test: Conforms to the requirements for single cable vertical burning test specified by IEC60332-1. DC Resistance of Conductor at 20°C: Complies with GB3956.-1997(IEC228:1978) and JB8734.3~4-1998 Insulation Resistance at 70°C: Complies with GB5023.3-2008 (idt IEC227-3:1985) Finished Product Voltage Withstand Test: 300/500V: 2.0KV(AC)/5min, no breakdown
