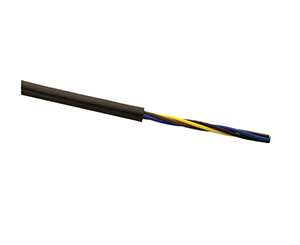

PVC Insulated Soft Cable(5 Cores or below 5)

Main Parameters
Product Name: PVC insulated soft cable
Product Standard: GB5023.5-2008 (IEC227-5)
Model and Specification of Soft Elevator Cable:
60227IEC53 (RVV): 300/300V0.5~0.75mm2 (2-3 cores); 60227IEC53 (RVV) 300/500V0.75~2.5mm2 (3-5 cores)
Operating Temperature: 0°C~40°C (Max. allowed temperature of conductor is 70°C)
Conductor Class: Class 5
Conductor Material of PVC Insulated Soft Cable: Anaerobic soft copper wires
Insulation Material: High quality lead-free PVC soft insulation material
Color of Insulation Core: Complies with GB5023.5-2008 (IEC227-5:1985)
Sheath Material and Color: High quality lead-free PVC soft sheath; gray (or black)
Burning Test: Conforms to the requirements for single cable vertical burning test specified by IEC60332-1.
DC Resistance of Conductor at 20°C: Complies with GB/T3956-1997(IEC228)requirement
Insulation Resistance at 70°C: Complies withGB5023.5-2008 (idt IEC227-5: 1985) requirement
Finished Product Voltage Withstand Test: 2.0KV (AC)/5min, no breakdown
Product Certificate: 3C Certificate No.: 2003010105082952; CE Certificate No.: CE-LVD-0502
Lead Free Environmental Performance: The heavy metal element content in our PVC insulated soft wire fully complies with EU RoHS requirements
