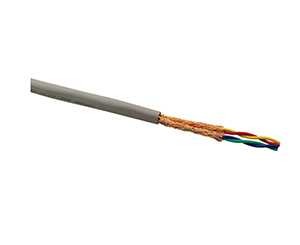

Oil Resistant PVC Insulated Soft Wire

Main Parameters
Product Name:
Oil resistant PVC insulated soft wire
Product Standard:
GB5023.7-2008 (IEC227-7) JB8734.5-1998
Wire Model: 60227IEC74 (RVVYP); RVVP
PVC Sheathed Soft Wire Specification: 60227IEC74 (RVVYP): 300/500V 0.5-2.5mm2 (2-7 cores); RVVP: 300/300V 0.2-2.5mm2 (1 core), 0.2-1.5mm2 (2-3 cores), 0.2-0.4mm2 (4-7 cores)
Operating Temperature: -0°C~40°C (Max. allowed temperature of conductor is 70°C)
Conductor Class: Class 5
Conductor Material: Anaerobic soft copper wire
Insulation Material: High quality lead free PVC soft insulation material
Color of Insulation Core: Conforms to GB5023.7-2008 (IEC227-7) and JB8734.5-1998
Sheath Material: 60227IEC74 (RVVYP): High quality lead-free and oil resistant PVC soft sheath; RVVP: High quality lead-free PVC soft sheath
Sheath Color: Gray (or black)
Burning Test: Conforms to the requirements for single cable vertical burning test specified by IEC60332-1.
DC Resistance of Conductor at 20°C: Complies with GB/T3956-1997 (IEC228) and JB8734.5-1998
Insulation Resistance at 70°C: Complies with GB5023.7-2008 (IEC227-7) and JB8734.5-1998
Finished Product Voltage Withstand Test:
300/500V: 2.0KV(AC)/5min, no breakdown;
300/300V: 1.5KV(AC)/5min, no breakdown
Product Certificate: 3C certificate No.: 2004010105119789, 2004010105119784
Lead Free Environmental Performance: The content of heavy metal element in our oil resistant elevator soft cable fully complies with EU RoHS requirement.
