Elevator Control Cabinet

    1. Full Serial DCVV Control Cabinet The electric drive uses a MENTOR II DCVV speed regulator produced by British CT, and there is no need for electric generator set. By changing the voltage on the brush of the motor, the motor speed can be modulated. Hence, an elevator controlled by the DCVV control cabinet offers a comfortable feeling, improved operation efficiency and reduced energy consumption. The full serial DCVV control cabinet uses an absorption circuit and a DC reactor to greatly reduce the operation noise. Our control cabinet is suitable for different kinds of DC elevators.
    1. Parallel Hydraulic Elevator Control Cabinet Power requirement: 3 phase, AC380V-460V, 50/60Hz Power range: 5KW-75kW Maximum elevator speed: 1.0m/s Number of floors: 5 Hydro-cylinder applicable: MCP-PYGM, GMV; MCP-PYBL, Belling Main controller: SM-01-DPC Drive mode: Star Delta Starter Landing accuracy: ±5mm Performance standard: GB7588/EN-81 Safety standard: JG5071-1996 Room temperature: -10℃-45 ℃ Color: light grey (optional) Display mode: Seven segment code, BCD code, Gray code, Binary code Dimension (mm): 1300×750×280
    1. Integrated Full Serial VVVF Control Cabinet Switches in Machine Room: Governor, upward overspeed protection (which for asynchronous motor), manual wheel, motor side EM-stop and emergency power running switches Switches in Shaft: Terminal limit switch, buffer switch, rope brake switch, pit EM-stop switch and deceleration switch (except limit switch) Switches on Car Top: Car EM-stop switch, car top EM-stop switch, safety gear, landing sensor, over-load, light-load, full-load switch (car bottom without power supply type).
    1. Roomless Integrated Full Serial VVVF Control Cabinet 1. Equipped with the fully upgraded iAstar AS380 drive controller and adopting CAN Bus serial communication method, our roomless control cabinet is easier to adjust. 2. This elevator control system is able to achieve humanized functions such as duplex control, group control, remote monitoring and emergency rescue, making elevator operation safer. 3. Thanks to the new system configuration with car top board and car function board, core quantity of the cable is greatly reduced. 4. Higher stability and better elevator travel feeling are achieved due to the excellent VVVF drive system.

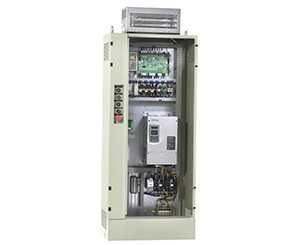

    1. Full Serial VVVF Control Cabinet 1. Assembled with a full serial control system, our VVVF control cabinet is able to fulfill multiple humanized functions such as duplex control, group control, remote monitoring, emergency rescue, etc. 2. The excellent VVVF drive system assembled in our full serial VVVF operating box ensures higher stability of the elevator and offers a better elevator travelling experience to passengers. 3. CAN bus serial communication method greatly reduces the quantity of cable cores and saves the cost spent on wiring.

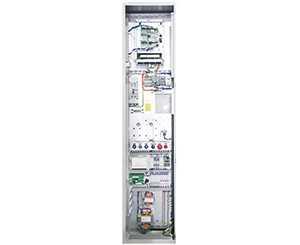

    1. Roomless Full Serial VVVF Control Cabinet 1. Our roomless full serial VVVF control cabinet is configured with a drive adopting VVVF (Variable Voltage Variable Frequency) technology. This allows the speed of the elevator to be adjusted continuously so as to guarantee comfortable travelling experience to passengers. 2. With a self-developed serial control system, our elevator control box supports duplex control, group control, remote monitoring and other functions. The application of CAN Bus serial communication technology not only greatly reduces the cable core quantity and the cost of wiring, but also makes the elevator run more stably and safely. Therefore, this is energy-efficient full serial elevator operation equipment which is worth selecting.
    1. Parallel VVVF Control Cabinet Switches in Machine Room: Governor, upward overspeed protection (which for asynchronous motor), manual wheel, motor side EM-stop and emergency power running switches Switches in Shaft: Terminal limit switch, buffer switch, rope brake switch, pit EM-stop switch and deceleration switch (except limit switch) Switches on Car Top: Car EM-stop switch, car top EM-stop switch, safety gear, landing sensor, over-load, light-load, full-load switch (car bottom without power supply type), light curtain switch, safety edge switch and arrival gong switch (electronic type)
    1. Integrated Home Lift Control Cabinet 1. Equipped with the fully upgraded iAstar AS380 drive controller and adopting CAN Bus serial communication method, our roomless control cabinet is easier to adjust. 2. This elevator control system is able to achieve humanized functions such as duplex control, group control, remote monitoring and emergency rescue, making elevator operation safer. 3. Thanks to the new system configuration with car top board and car function board, core quantity of the cable is greatly reduced. 4. Higher stability and better elevator travel feeling are achieved due to the excellent VVVF drive system.

The elevator control cabinet is the device to control the operation of the elevator. It is usually installed in the control room. Our elevator control cabinet supports simplex control, duplex control, group control, and remote monitoring functions, etc. The electric motor drive of some type of the elevator control cabinet adopts VVVF(Variable Voltage Variable Frequency) system. The elevator speed can be adjusted continuously. The color of the elevator control cabinet can be chosen with one's preference, with available color of dark grey, blue, light grey or customer-made.

As a professional elevator control cabinet manufacturer in China, STEP also provides elevator main controller board, harbor crane 4-quadrant inverter, elevator inverter, and elevator group control system, among others.
