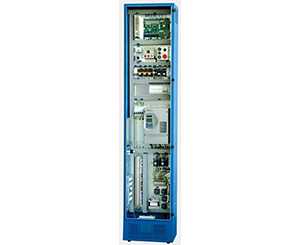

Roomless Full Serial VVVF Control Cabinet

Features
1. Our roomless full serial VVVF control cabinet is configured with a drive adopting VVVF (Variable Voltage Variable Frequency) technology. This allows the speed of the elevator to be adjusted continuously so as to guarantee comfortable travelling experience to passengers.

2. With a self-developed serial control system, our elevator control box supports duplex control, group control, remote monitoring and other functions. The application of CAN Bus serial communication technology not only greatly reduces the cable core quantity and the cost of wiring, but also makes the elevator run more stably and safely. Therefore, this is energy-efficient full serial elevator operation equipment which is worth selecting.

Technical Parameters of Elevator Operation Cabinet
Rated Velocity:
≤2.5m/s
Power Range: 5~22kW
Power Supply: AC200~230V, 50/60Hz, 3 phase; AC360~380V, 50/60Hz, 3 phase
Compatible Inverter: STEP iAStar, YASKAWA, SIEI, FUJI, CT KEB, SIEMENS etc.
Landing Method: Direct landing
Landing Accuracy: ≤±3mm
Travelling Feeling: Smooth, efficient and comfortable
Temperature of Machine Room: -10°C~ 45°C
Safety Standard: GB7588, EN-81
Connection mode: WEIDMULLER terminal, AMP plug
Standard Control Cabinet Dimension: 400mm (W) ×2100mm (H) ×300mm (D)
Color: Dark grey, blue, light grey, or customized
