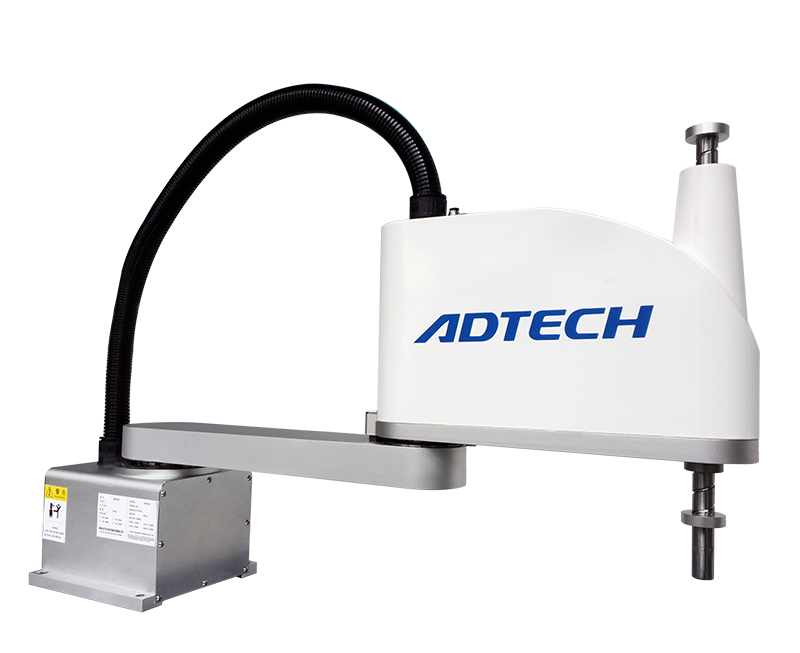

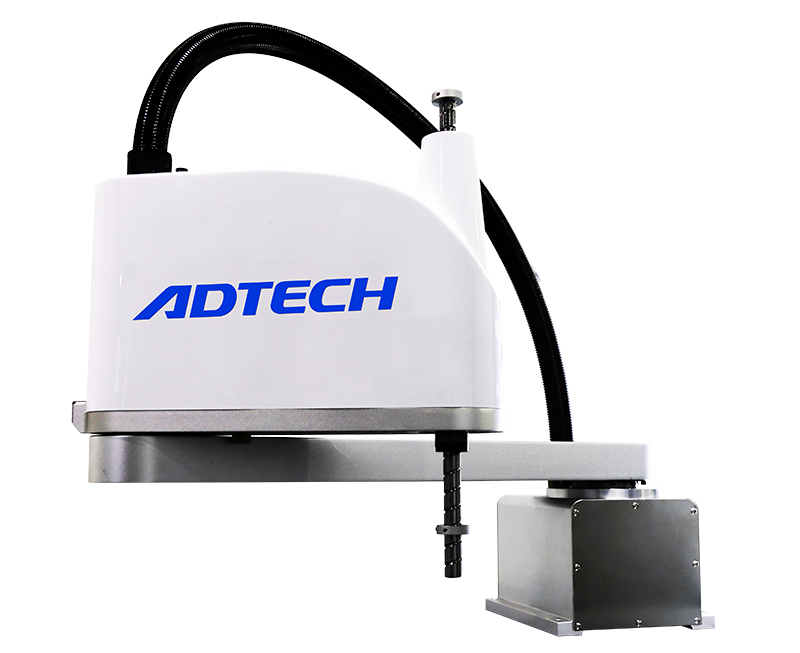

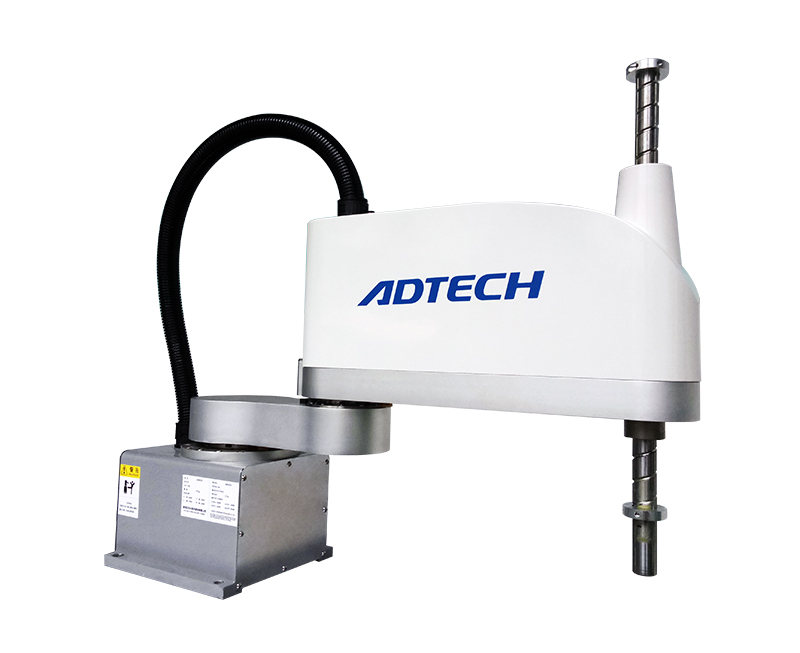

SCARA Robot AR Series

AR series SCARA robot features compact structure, flexible design, fast running speed, high transmission precision, low noise, etc. Integrated control system ADTECH QC400A/QC410B is applied, multiple communication protocols are supported. The SCARA robot equips advanced functions including trajectory tracing, stable accelerate/deaccelerate, self-adapting, vibration control, etc., thus is granted good efficiency for both straight path and curved path with high data point density, and therefore wide applications.

Applications

Computer assembling Auto part manufacturing loading/unloading
Medical manufacturing material carrying Mobile phone part manufacturing loading/unloading
Punch press loading/unloading Box grabbing and paper piece tracing
Injection molding machine loading/unloading Sorting via vision
Chip carrying PCB inspection
PCB carrying Screw driving

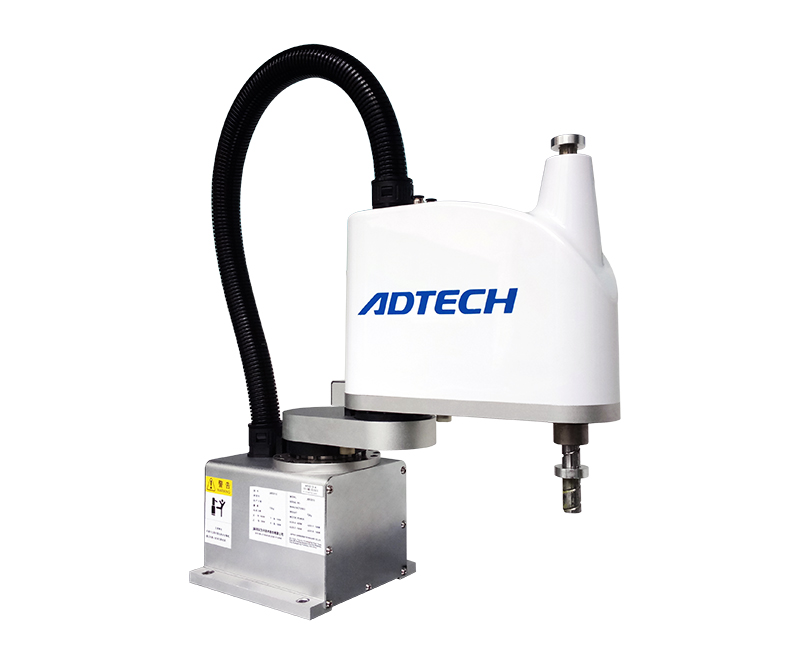

AR3215 Small-scale SCARA Robot (Arm Length 300mm)
AR3215 Small-scale SCARA Robot (Arm Length 300mm)

Axis quantity: 4
Reach: 300mm
Rated load capacity: 2KG
Standard cycle time: 0.39s

AR4215 Desktop SCARA Robot (Arm Length 400mm)
AR4215 Desktop SCARA Robot (Arm Length 400mm)

Axis quantity: 4
Reach: 400m
Rated load capacity: 2KG
Standard cycle time: 0.39s

AR5215 SCARA Robot (Arm Length 500mm)
AR5215 SCARA Robot (Arm Length 500mm)

Axis quantity: 4
Reach: 500mm
Rated load capacity: 2KG
Standard cycle time: 0.4s

AR6520 SCARA Robot for Handling (Arm Length 600mm)
AR6520 SCARA Robot for Handling (Arm Length 600mm)

Axis quantity: 4
Reach: 600mm
Rated load capacity: 5KG
Standard cycle time: 0.39s

AR7520 High-precision SCARA Robot (Arm Length 700mm)
AR7520 High-precision SCARA Robot (Arm Length 700mm)

Axis quantity: 4
Reach: 700mm
Rated load capacity: 5KG
Standard cycle time: 0.41s

AR8520 Multi-joint SCARA Robot for Handling and Assembly (Arm Length 800mm)
AR8520 Multi-joint SCARA Robot for Handling and Assembly (Arm Length 800mm)

Axis quantity: 4
Reach: 800mm
Rated load capacity: 5KG
Standard cycle time: 0.42s

AR61030 High-speed SCARA Robot (Arm Length 600mm)
AR61030 High-speed SCARA Robot (Arm Length 600mm)

Axis quantity: 4
Reach: 600mm
Rated load capacity: 10KG
Standard cycle time: 0.39s

AR81030 SCARA Robot (Arm Length 800mm)
AR81030 SCARA Robot (Arm Length 800mm)

Axis quantity: 4
Reach: 800mm
Rated load capacity: 10KG
Standard cycle time: 0.38s

AR101030 SCARA Robot for Installation and Inspection (Arm Length 1000mm)
AR101030 SCARA Robot for Installation and Inspection (Arm Length 1000mm)

Axis quantity: 4
Reach: 1000mm
Rated load capacity: 10KG
Standard cycle time: 0.4s

AR6215/6220 SCARA Robot (Arm Length 600mm)
AR6215/6220 SCARA Robot (Arm Length 600mm)

Axis quantity: 4
Reach: 600mm
Rated load capacity: 2KG
Standard cycle time: 0.39s

AR7225 SCARA Robot (Arm Length 700mm)
AR7225 SCARA Robot (Arm Length 700mm)

Axis quantity: 4
Reach: 700mm
Rated load capacity: 2KG
Standard cycle time: 0.4s

AR9225 SCARA Robot (Arm Length 900mm)
AR9225 SCARA Robot (Arm Length 900mm)

Axis quantity: 4
Reach: 900mm
Rated load capacity: 2KG
Standard cycle time: 0.42s

Related products
Other products
    2. SCARA Robot FR Series

      FR series SCARA robot applies suspended structure, in which the walking axis is designed above the machine tool, the robot thus needs less ground area for installation. Besides, attributed to the suspended structure, the robot is suitable for deployment that...

    2. SCARA Robot GR Series

      GR series SCARA robot performs a faster work than AR series, while performs the same as AR series in other aspects.
