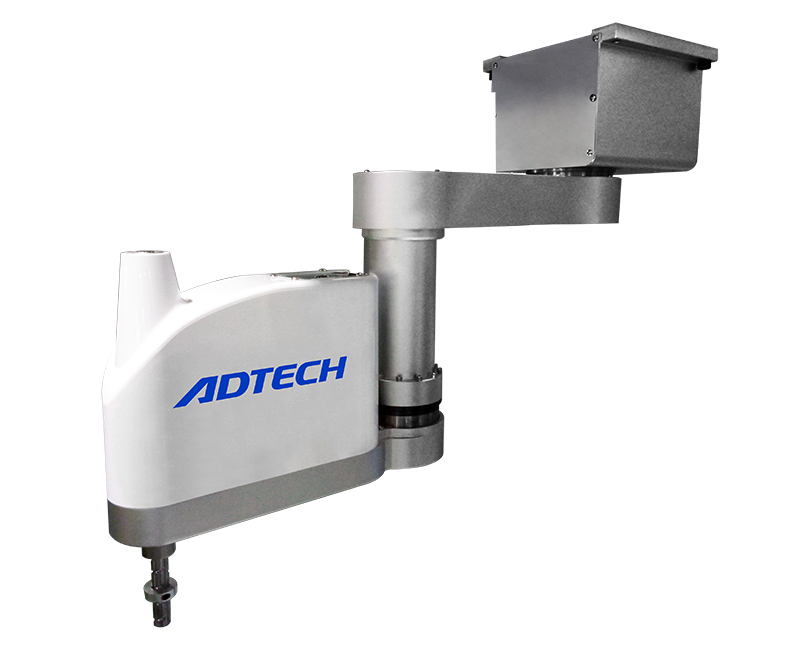

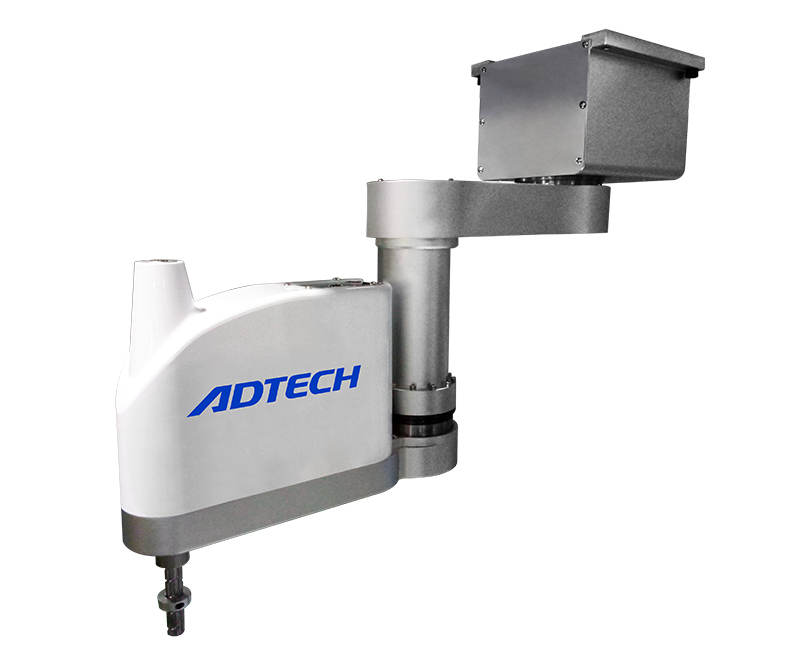

SCARA Robot FR Series

FR series SCARA robot applies suspended structure, in which the walking axis is designed above the machine tool, the robot thus needs less ground area for installation. Besides, attributed to the suspended structure, the robot is suitable for deployment that machine tool is set on sides of the lead rail, so as to make the rail shorter. Compared with traditional types, FR series SCARA robot requires less workshop height for mounting, which is convenient for installation and operation of other devices.

FR5215 Suspended SCARA Robot

Axis quantity: 4
Reach: 550mm
Rated load capacity: 2KG
Standard cycle time: 0.42s

FR6115 Suspended SCARA Robot

Axis quantity: 4
Reach: 600mm
Rated load capacity: 1KG
Standard cycle time: 0.42s

FR8320 Suspended SCARA Robot

Axis quantity: 4
Reach: 850mm
Rated load capacity: 3KG
Standard cycle time: 0.5s
