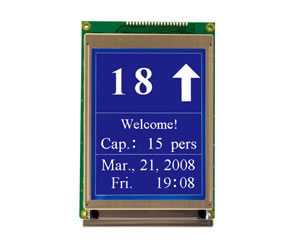

Serial High Resolution LCD Indicator Board

With a 16 bit high performance industrial CPU and a CAN-Bus communication standard wiring design, the serial high resolution LCD indicator board achieves multiple functions including elevator call and elevator locking. After receiving the call signal, the serial high resolution LCD indicator board will light the button of the corresponding floor.

The LED indicator board offers a large display area of 120mm by 90mm and display information in white text and blue background. 320 by 240 dot matrix ensures clear message display, and variety of information can be displayed, including current floor, direction, Chinese/English welcome message, time, data, and elevator status such as overload, full load, fire service mode, inspection mode, independent service mode, attendant service mode, etc. Time and date can be set and modified manually on the serial high resolution LCD indicator board, while welcome message can be modified through the control computer.
