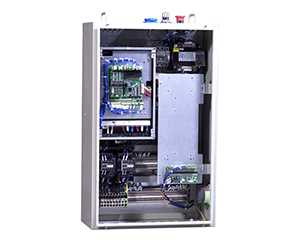

Integrated VVVF Escalator Control Cabinet

Features
1. Our MCP-ESHC 500 integrated VVVF escalator control cabinet adopts iAstar AS330 integrated escalator drive controller. This roomless control box is able to achieve smooth start and idle speed adjustment of the escalator.

2. The bypass VVVF inverter is optional to be configured to this integrated control case to make the escalator switches from one operation mode to another more stably. At the same time, such configuration helps save energy to the largest degree.

3. Our escalator manipulating cabinet offers various protection functions as well as many other useful functions such as error display, remote monitoring, I/O extension, handheld operator controlling, etc. These functions guarantee the escalators run safely and stably.

Technical Parameters
Power Supply: AC380V~460V, 50/60Hz, 3 phase
Power Range: 5.5kW~22kW
Main Controller: STEP AS330 escalator integrated drive controller
Safety Standard: GB16899/EN115
Environment Temperature: -10°C~ 45°C
Operation Mode: Full VVVF conversion, bypass VVVF conversion (optional)
Color of Integrated VVVF Escalator Control Cabinet: Dark gray or customized
Standard Cabinet Dimension (mm): 800×500×250 (Full VVVF conversion)
IP Code: IP21

Interface Description
Power Interface: 16mm2 crimp terminal
Adapted Motor: AC asynchronous motor
Brake Voltage: DC110/AC220V; Rated current ≤3A; Interface: 2.5mm2 crimp terminal
Light Voltage: AC220V
Cable Interface: 2.5mm2 crimp terminal
