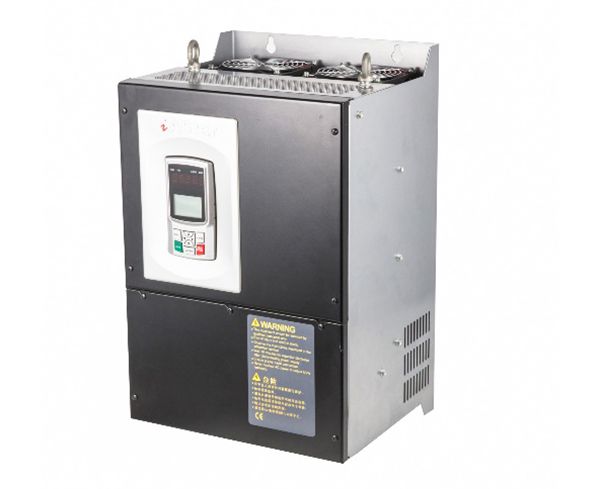

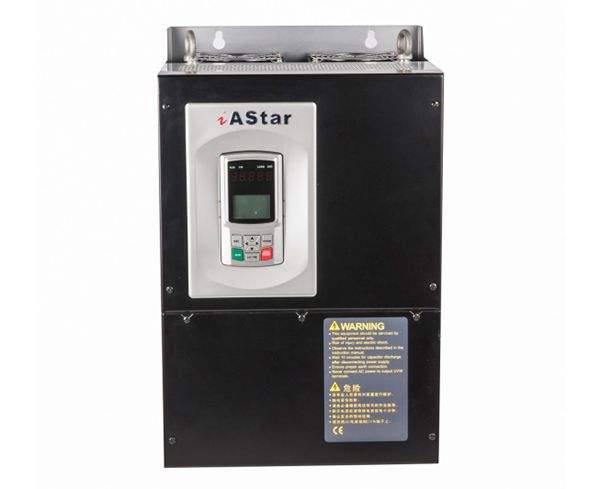

High Performance Vector VFD/Inverter, AS500

In addition to the adoption of V/F control, sensorless vector control, closed loop vector control and torque control techniques, our AS500 series high performance variable frequency drive also utilizes synchronous open loop vector control and synchronous closed loop vector control technologies to further enhance the reliability and versatility. This high performance VFD is typically suitable for asynchronous motors and synchronous motors in construction machinery and heavy industrial applications.


Features

  • Suitable for a variety of motor types;
  • For synchronous motor in running, the VFD tracks the motor speed within tens of milliseconds;

Applications
----for construction machinery and heavy industrial applications, overload 150% capacity
Metal processing machinery: pipe expander machine, metal stamping machine, forging press, milling machine
Construction machinery: concrete mixer, block making machine
Mining machinery: mine hoist system, ball mill
Storage and handling equipment: three-dimensional warehouse, belt conveyor
Petrochemical: pumping unit
Permanent magnet synchronous applications: compressor, food extruder


Specifications

Stable operation: 40℃, heavy load Frame size
Model AS500 Rated input current (A) Rated output current (A) Applicable motor (kW) Overload 150%(1min) Output current (A)
2T01P1 7 6 1.1 9 A1
2T02P2 13 12 2.2 18
2T03P7 19 18 3.7 27
4T01P1 3.7 3.5 1.1 5.3 A1
4T02P2 6.6 6.2 2.2 9.3
4T03P7 9.5 9 3.7 13.5
4T05P5 13.7 13 5.5 19.5
4T07P5 20 19 7.5 28.5 A2
4T0011 29 27 11 40.5
4T0015 35 34 15 51 A3
4T18P5 43 41 18.5 61.5
4T0022 50 48 22 72
4T0030 66 65 30 97.5 A4
4T0037 82 80 37 120
4T0045 106 96 45 144 A5
4T0055 138 128 55 192
4T0075 170 160 75 240 A6
4T0090 205 195 90 292.5 A7
4T0110 250 240 110 360
4T0132 280 270 132 405 A8
4T0160 312 302 160 453
4T0185 380 370 185 555
4T0200 400 390 200 585
4T0220 436 426 220 639
4T0250 490 480 250 720 A9
4T0280 530 520 280 780
4T0315 610 600 315 900
4T0355 660 650 355 975
4T0400 770 760 400 1140 A10
4T0450 820 810 450 1215
4T0510 940 930 510 1395 A11
4T0560 1040 1030 560 1545
