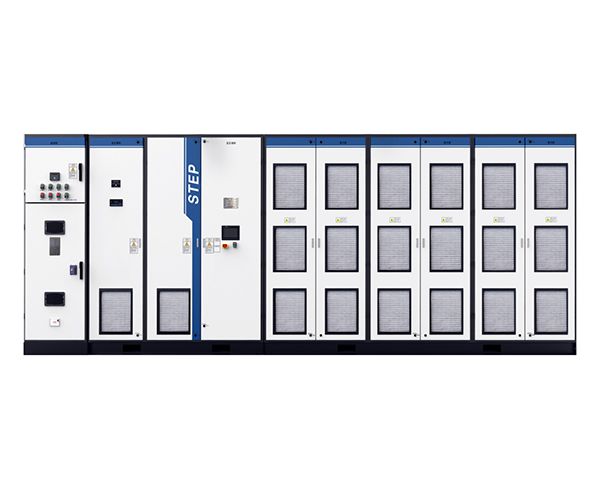

10kV Medium Voltage VFD/Inverter

10kV Medium Voltage VFD/Inverter
Inquiry Form

Features
10 kV, up to 16,000 kVA (12,500 kW);
Multilevel PWM control mode provides sine wave current output;
The common mode voltage and dU/dt are small, and there are no special requirements for motors and cables;

Specifications

Model Rated current (A) Capacity (kVA) Applicable motor (kW) Dimension (W×D×H)(mm)
AS800-0300-T10-PA 22 375 300 3800×1500×2667
AS800-0400-T10-PA 29 500 400
AS800-0450-T10-PA 32 560 450
AS800-0500-T10-PA 36 630 500
AS800-0560-T10-PA 40 700 560
AS800-0630-T10-PA 46 800 630
AS800-0710-T10-PA 52 900 710
AS800-0800-T10-PA 58 1000 800 4200×1500×2667
AS800-0900-T10-PA 65 1120 900
AS800-1000-T10-PA 72 1250 1000
AS800-1120-T10-PA 81 1400 1120
AS800-1250-T10-PA 92 1600 1250 4200×1500×2707
AS800-1400-T10-PA 104 1800 1400
AS800-1600-T10-PA 115 2000 1600 4400×1600×2707
AS800-1800-T10-PA 130 2250 1800
AS800-2000-T10-PA 144 2500 2000
AS800-2240-T10-PA 162 2800 2240
AS800-2500-T10-PA 182 3150 2500 6900×1500×2895 (including startup cabinet)
AS800-2800-T10-PA 202 3500 2800 7200×1600×2895 (including startup cabinet)
AS800-3150-T10-PA 231 4000 3150
AS800-3550-T10-PA 254 4500 3550
AS800-4000-T10-PA 289 5000 4000
AS800-4500-T10-PA 335 5800 4500
AS800-5000-T10-PA 364 6300 5000 10920×1700×2895(including startup cabinet)
AS800-5600-T10-PA 404 7000 5600
AS800-6300-T10-PA 462 8000 6300 11120×1700×2895(including startup cabinet)
AS800-7100-T10-PA 520 9000 7100
AS800-8000-T10-PA 600 10000 8000

Note: startup cabinet is configured when power is greater than 2500kW. Please contact us when the power is greater than 8000kW.
