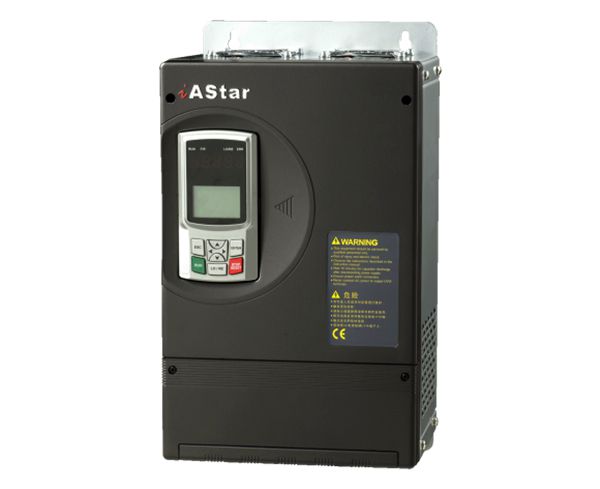

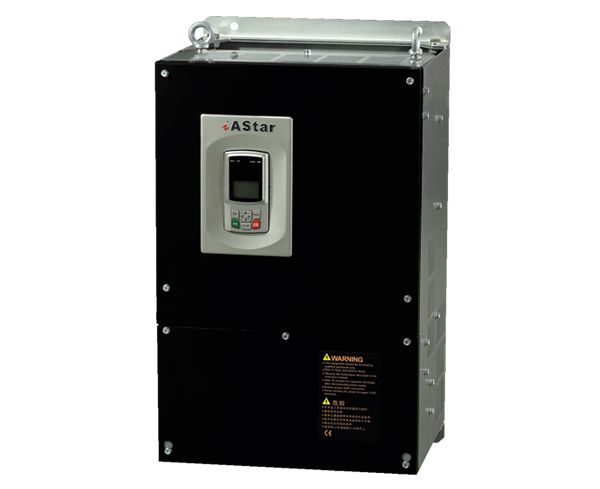

Vector Type V/F Control VFD/Inverter, AS180

AS180 series VFD is a common type of variable frequency drives designed for markets across the globe. It was developed by absorbing advanced German technology and manufactured in local facilities, further enhancing the reliability and versatility of the product. The excellent performance of V/F control can perfectly satisfy a variety of lightly loaded applications.


Features
PID parameters can be set via menu of the PID control, calculation is performed with no need for additional external regulator;
DC braking automatically stops the motor when this free-running motor runs in an unknown direction of rotation;
For pumps and fans that have variable torque loads subject to the 'cube law', high performance excitation control enables the motor operation to be optimal and energy efficient;


Applications
----for applications with light loads, overload 120% capacity
Fans: exhausting, blowing
Pumps: constant pressure water supply, water drainage
HVAC: heating, air terminal unit

Specifications

Stable operation: 40℃, heavy load Frame size
Model AS180 Rated input current (A) Rated output current (A) Applicable motor (kW) Overload 120%(1min) Output current (A)
4T02P2 5.3 5 2.2 6 A1
4T03P7 7.5 7 3.7 8.4
4T05P5 11.5 11 5.5 13.2
4T07P5 16 15 7.5 18
4T0011 21 20 11 24 A2
4T0015 30.5 29 15 34.8
4T18P5 38 36 18.5 43.2 A3
4T0022 46 44 22 52.8
4T0030 59 56 30 67.2
4T0037 75 72 37 86.4 A4
4T0045 94 90 45 108
4T0055 115 110 55 132 A5
4T0075 154 148 75 177.6
4T0090 183 176 90 211.2 A6
4T0110 216 208 110 249.6 A7
4T0132 261 252 132 302.4
4T0160 306 296 160 355.2 A8
4T0185 367 356 185 427.2
4T0200 402 390 200 468
4T0220 427 415 220 498
4T0250 481 468 250 561.6
4T0280 533 520 280 624 A9
4T0315 614 600 315 720
4T0355 664 650 355 780
4T0400 755 740 400 888
4T0450 845 830 450 996 A10
4T0510 965 950 510 1140
4T0560 1086 1070 560 1284 A11
4T0630 1186 1170 630 1404
