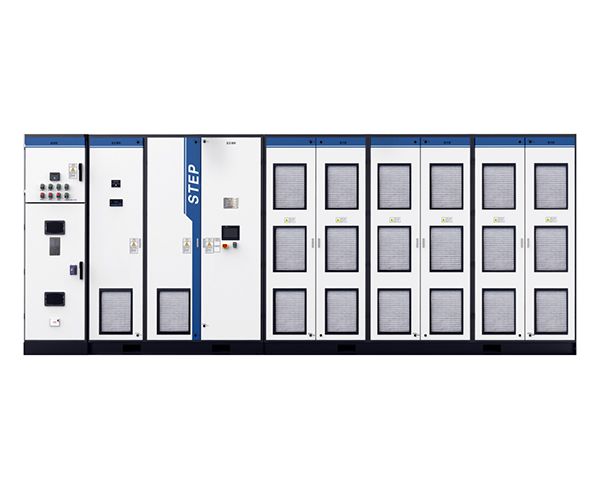

3kV Medium Voltage VFD/Inverter

Features
3kV, up to 3150 kVA (2500kW);
Vector control, low harmonic, reducing maintenance cost;
No need to add output filter, no derating of the motor is required due to harmonic;

Specifications

Model Rated current (A) Capacity (kVA) Applicable motor (kW) Dimension (W×D×H)(mm)
AS800-0250-T03-PA 58 300 250 2600×1500×2667
AS800-0315-T03-PA 77 400 315
AS800-0355-T03-PA 87 450 355
AS800-0400-T03-PA 96 500 400
AS800-0450-T03-PA 108 560 450
AS800-0500-T03-PA 121 630 500
AS800-0560-T03-PA 135 700 560
AS800-0630-T03-PA 154 800 630 2600×1500×2707
AS800-0710-T03-PA 173 900 710
AS800-0800-T03-PA 192 1000 800 3500×1500×2895
AS800-0900-T03-PA 216 1120 900 4300×1500×2895 (including startup cabinet)
AS800-1000-T03-PA 241 1250 1000
AS800-1120-T03-PA 269 1400 1120
AS800-1250-T03-PA 308 1600 1250
AS800-1400-T03-PA 335 1800 1400 5520×1500×2895 (including startup cabinet )
AS800-1600-T03-PA 385 2000 1600
AS800-2000-T03-PA 481 2500 2000
AS800-2500-T03-PA 600 3150 2500

Note: startup cabinet is configured when power is greater than 900kW. Please contact us when the power is greater than 2500kW.
