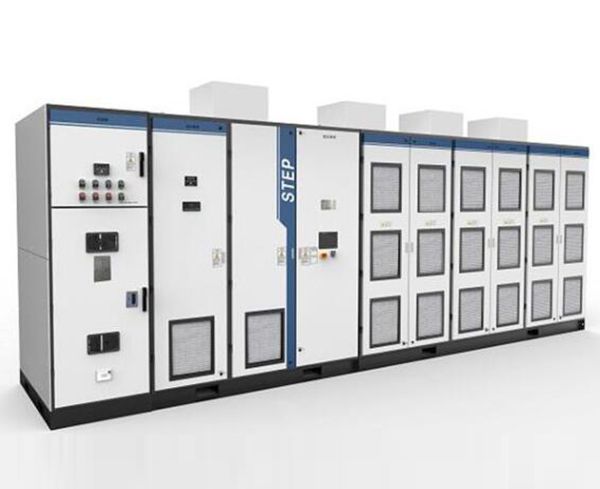

Features
6kV, up to 10,000 kVA (8,000 kW);
High flexibility of terminal expansion, without the need for PLC;
Support constant power operation above fundamental frequency;
Specifications
Model | Rated current (A) | Capacity (kVA) | Applicable motor (kW) | Dimension (W×D×H)(mm) |
AS800-0280-T06-PA | 34 | 350 | 280 | 2900×1500×2667 |
AS800-0355-T06-PA | 43 | 450 | 355 | |
AS800-0400-T06-PA | 48 | 500 | 400 | |
AS800-0500-T06-PA | 61 | 630 | 500 | |
AS800-0560-T06-PA | 67 | 700 | 560 | |
AS800-0630-T06-PA | 77 | 800 | 630 | 2900×1500×2707 |
AS800-0710-T06-PA | 87 | 900 | 710 | |
AS800-0800-T06-PA | 96 | 1000 | 800 | |
AS800-0900-T06-PA | 108 | 1120 | 900 | 3300×1500×2707 |
AS800-1000-T06-PA | 120 | 1250 | 1000 | |
AS800-1120-T06-PA | 135 | 1400 | 1120 | |
AS800-1250-T06-PA | 154 | 1600 | 1250 | |
AS800-1400-T06-PA | 173 | 1800 | 1400 | |
AS800-1600-T06-PA | 192 | 2000 | 1600 | 4405×1500×2895 |
AS800-1800-T06-PA | 217 | 2250 | 1800 | 5205×1500×2895 (including startup cabinet) |
AS800-2000-T06-PA | 241 | 2500 | 2000 | |
AS800-2240-T06-PA | 269 | 2800 | 2240 | |
AS800-2500-T06-PA | 315 | 3150 | 2500 | |
AS800-2800-T06-PA | 337 | 3500 | 2800 | 7420×1600×2895 (including startup cabinet) |
AS800-3150-T06-PA | 385 | 4000 | 3150 | |
AS800-3550-T06-PA | 433 | 4500 | 3550 | |
AS800-4000-T06-PA | 481 | 5000 | 4000 | |
AS800-4500-T06-PA | 558 | 5800 | 4500 | 7520×1700×2895 (including startup cabinet) |
AS800-5000-T06-PA | 600 | 6300 | 5000 |
Note: startup cabinet is configured when power is greater than 1800kW. Please contact us when the power is greater than 5000kW.
