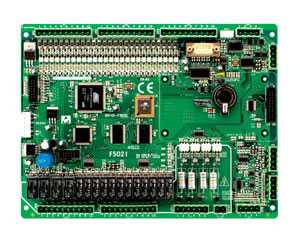

Русский32-Bit Standard Serial Main Controller Board
The main controller board is equipped with a 32-bit industrial ARM processor, and comes with dual-CPU to ensure improved system safety. It offers strong anti-interference and anti-static capabilities and passed the test for contact discharge up to 8000V. The 32-bit standard serial main controller board is manufactured according to EN81 and GB7588 safety rules, and is ideal for control of elevators in commercial buildings and residential buildings up to 64 floors. It helps ensure smooth, steady, accurate and comfortable elevator running. The maximum elevator speed is up to 4m/s.
The serial main controller board supports CAN bus communication and hence supports weight compensation system with CAN bus interface. STEP handheld elevator controller can also be connected to the main controller board. The main controller board also supports functions such as remote monitoring, elevator car performance test, and control of both asynchronous and synchronous traction motor. And it is compatible with encoders with differential, open collector, or pull-push outputs. It can keep maximally 20 historic records for elevator failures.
With IC card intelligent managejment function, the main controller board can be integrated into a Building Management System for building security monitoring use. It also supports remote monitoring function. With isolated CAN transceiver, the main controller board offers reduced electromagnetic interference susceptibility while being used for building security monitoring system.
Characteristic of 32-bit Standard Serial Main Controller Board
1. 32-bit high-performance industrial class ARM controller
2. Wide voltage range from DC20V to DC28V
3. Safety chain and door-lock checking function
4. District monitoring through isolated CAN, strong anti-interference performance
5. Powerful electromagnetic anti-interference ability (EFT- 4000V)
6. Optimal electrostatic anti-interference ability (ESD 8000V)
7. EN81 and GB7588 compliant, CE and CSA certified
Functions
1. The 32-bit standard serial main controller board is suitable for commercial elevator, residential lift, hospital elevator, and sightseeing elevator.
2. The elevator speed can be 0.63-4m/s.
3. Applicable for the building up to 64 floors
4. This product is suitable for synchronous gearless and asynchronous geared traction machine.
5. CAN Bus serial communication mode
6. Analog speed control and multiple given speeds
7. Compatible with different, open-collector and push-pull encoders
8. Dual and group control function available
9. Load-weighing compensation function
10. Elevator IC card management function
11. District monitoring and remote monitoring
12. Applicable for our STEP standard hand-held elevator controller
13. Elevator fault recording function is available with this 32-bit standard serial main controller board.
14. Compliant with EN81 and GB7588, CE and CSA certified
Standard Functions Offered by the 32-Bit Standard Serial Main Controller Board
| Serial number | Standard functions |
| 1 | Full collective control |
| 2 | Inspection mode |
| 3 | Low speed rescue operation |
| 4 | Testing mode |
| 5 | Timer control |
| 6 | Automatic control on door-opening time |
| 7 | Door open at current floor |
| 8 | Close the door in advance by door-closing button |
| 9 | Open the door by door-opening button |
| 10 | Door re-open |
| 11 | Landing at another destination |
| 12 | Manual call cancellation |
| 13 | Automatic call cancellation (when elevator operated in reversed direction) |
| 14 | Direct landing |
| 15 | Full load bypass (ignore car calls in full load condition) |
| 16 | Car light and ventilation fan shut off automatically (when elevator is standby) |
| 17 | Automatic return to the lowest floor |
| 18 | LCD operation interface |
| 19 | Analog speed control |
| 20 | Digital speed control |
| 21 | Failure record |
| 22 | Self-learning of hoistway parameters |
| 23 | Service floor setting |
| 24 | Setting of the displaying characteristics |
| 25 | Attendant travel |
| 26 | Independent travel |
| 27 | Dot matrix floor display |
| 28 | Travel-direction scrolling display |
| 29 | Automatic correction for landing position signals |
| 30 | Elevator locking |
| 31 | Door-open protection (when elevator is not in landing area) |
| 32 | Light curtain protection (to ensure the safety of passengers and their belongs during door-closing process) |
| 33 | Overload protection |
| 34 | Anti-nuisance |
| 35 | Protection from running in reversed direction |
| 36 | Protection from rope slipping |
| 37 | Protection from car sliding |
| 38 | Protection from car overrun |
| 39 | Contactor's contact safety protection (to make sure the contactors work safely) |
| 40 | Speed regulator failure protection |
| 41 | WDT protection |
Optional Functions Offered by the 32-Bit Standard Serial Main Controller Board
| Series number | Optional functions | Remark |
| 1 | Advanced door opening | With SM-11-A board |
| 2 | Re-leveling with door open | With SM-11-A board |
| 3 | Fire emergency return | |
| 4 | Fireman operation | |
| 5 | Operation by auxiliary car operation panel | |
| 6 | Operation by rear door car operation panel | |
| 7 | Operation by handicapped car operation panel | |
| 8 | Duplex control | |
| 9 | Group control | |
| 10 | Up peak control | |
| 11 | Down peak control | |
| 12 | Disperse external car hall | |
| 13 | Building security monitoring | |
| 14 | Remote monitoring | |
| 15 | Arrival gong in the car | |
| 16 | Arrival hall lantern | |
| 17 | Arrival gong in the hall | |
| 18 | Service floor control by IC card in the car | |
| 19 | Service floor control by IC card in the hall | |
| 20 | Independent control of front and rear doors | |
| 21 | Enforced door closing | |
| 22 | VIP priority service | |
| 23 | Service floor control by password | |
| 24 | Service-floor switch via control button (single elevator control) | |
| 25 | Service-floor switch via control button (group control) | |
| 26 | Non-service floor setting through car operation panel | |
| 27 | Emergency landing when power off | |
| 28 | Emergency power operation | |
| 29 | Earthquake operation | |
| 30 | Voice announcer |
