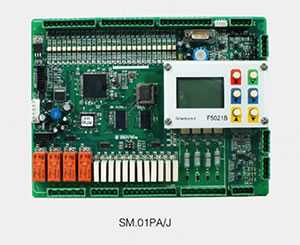

32-bit Elevator Controller Board

Application
This 32-bit elevator controller board can be used in commercial elevator, residential elevator, hospital elevator and tourist elevator with speed of 0.63-4m/s and maximum 64 stops. It is suited for both synchronous gearless and asynchronous geared traction elevators.


Advantages
1. CAN Bus serial communication method is applied to our commercial elevator main controller board.

2. Analog speed presetting and multi speed presetting modes are available to our 32-bit elevator controller board.

3. This elevator controller panel is compatible with differential, open-collector and push-pull encoders.

4. Our product comes with duplex control and group control function, load weighing compensation function, elevator IC card management function, district monitoring function and remote monitoring function.

5. Our elevator control circuit board supports tri-car door opening and can be operated through the STEP standard hand-held operator.

6. The LCD display is able to show the status and parameter of the system as well as the real-time speed curve of the elevator.

7. Twenty pieces of fault records can be saved in this elevator controller device.

8. Our product complies with the EN81 and GB7588 standards and passes the CE, CSA and TUV certifications.
